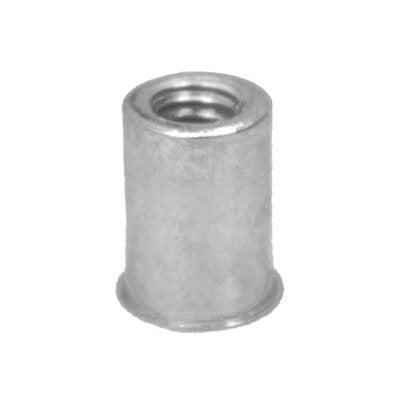

Auveco No. 13494 Metric Aluminum Thin Sheet Nutsert M6-1.0, Quantity - 25

by Auveco
$18.30
SKU 13494

Ships within 24 hours (M-F)

Product Information

Quantity: 25
Barrel Diameter: 9.50mm Max.
Class: Metric 6H, US 2B
Drill Size: 3/8 in.
Finish: None
Flange Diameter: 10.54mm
Grip Range: 0.762mm - 4.19mm
Hole Size: 9.53mm - 9.63mm
Material: 5056 Aluminum Alloy
Overall Length: 15.49mm
Screw Size: M6-1.0
Made In: Taiwan

Threaded Inserts for Thin Material: The Auveco Thin Sheet Nutsert has been designed to provide a highly efficient method of securing threads from one side of the work, in materials generally too thin to support threads. Its performance has been proven in plastic, aluminum, mild steel and fiberglass. They can also withstand high loads without vibrating or loosening under extreme operating conditions. The Auveco Thin Sheet Nutsert is a tension fastener with high pull out, insuring no rotation or vibration where a cover plate is used. The system’s unique blind tooling installs TSNs at consistent rates using unskilled labor.

How it Works: The Thin Sheet Nutsert, held securely by the tool, is placed into a prepared hole. Upon the tool’s actuation, the threaded portion is pulled until the fastener’s wall collapses radially outward, clinching it tight against the sheet. The tool is withdrawn, leaving the Thin Sheet Nutsert ready to receive a bolt or screw. This complete operation takes only a few seconds and can be performed by anyone.

Strength Tests: Torque Strength: with an attaching part over the Thin Sheet Nutsert, offering a bearing surface, the TSN will remain intact past the point of the screw or bolt breaking (head torqued off). In almost all cases the threads of the TSN will remain undistorted and serviceable; an exception to this statement is when an extremely high tensile bolt is used.

Steel: 1010 Low Carbon Steel, Type 11 Class 3 with Zinc Plate, Clear Chromate

 Aluminum: Aluminum Alloy 5056, Plain Finish, Metric Class 6H, U.S. Class 2B
